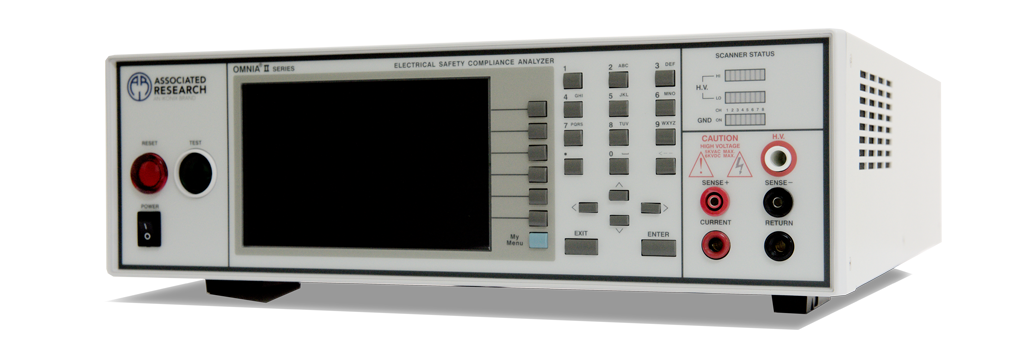

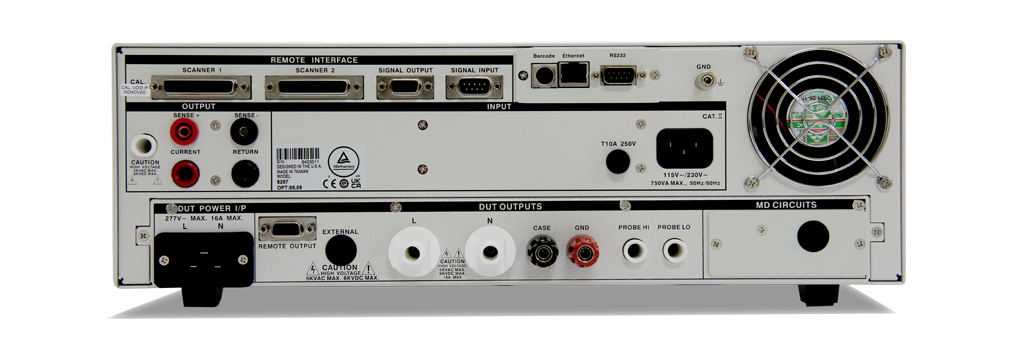

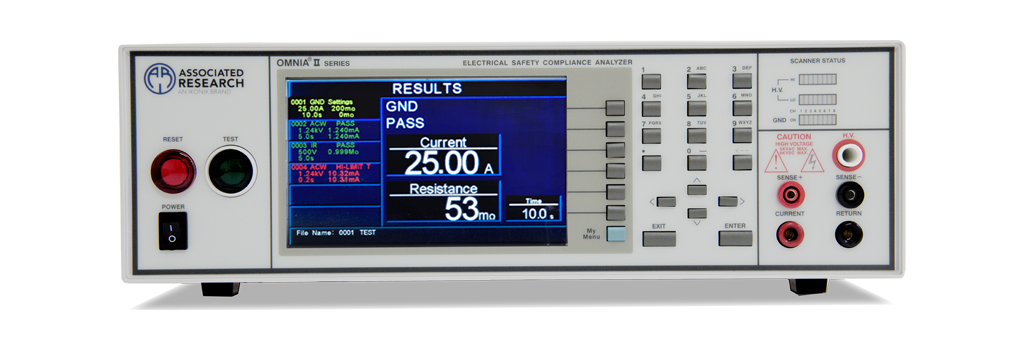

OMNIA II® Electrical Safety Compliance
Analyzer



The Complete Solution for Advanced Electrical Safety Testing

The OMNIA® II series is a versatile, multi-function Electrical Safety Tester designed for laboratory and production line applications. Suitable for both complex medical devices and simple electrical appliances, OMNIA® II's 7-in-1 design offers productivity-enhancing features and safety technologies to ensure compliance with rigorous international safety standards. It includes a wide array of testing capabilities, a multi-language menu system, and various automation interfaces. The OMNIA® II series is available in six models: 8204, 8254, 8206, 8256, 8207, and 8257.

Safety and Productivity Features

AC Hipot

DC Hipot

Ground Continuity

Insulation Resistance

Ground Bond

Functional Run

Leakage Current

RS-232

Modular Multiplexer

Withstand Compatible

7 Testing Capabilities in 1 System

The series offers fully integrated testing capabilities, including 5 kV @ 100 mA AC and 6 kV @ 20 mA DC withstand (ACW/DCW), insulation resistance (IR), 40 Amp AC ground bond (AC GB), ground continuity (GC), touch current (TC/LLT), and functional run testing (RT). This integration of multiple testing tools into a single solution enhances test efficiency with one-step testing functionality.

Two Function Performance at Once

The DualCHEK functionality allows for simultaneous execution of Hipot and ground bond testing, significantly improving testing efficiency.

Fast Discharge, Faster to Safety

AR exclusive patent right on fast discharge function to help DUT expeditiously releases any excess electricity within 50ms, ensuring maximum operator safety.

Hot Hipot Testing

The tester is capable of performing hipot tests while the DUT is powered on, and complies with China Standard GB/T 12350-2009 for more demanding quality tests.

Enhanced Accuracy and Safety with Real-World Simulation MDs

Built-in with seven different human-body simulation measuring devices (MD), this feature enhances accuracy, ensures compliance, improves safety, and increases efficiency by replicating real-world conditions.

Specification

Can't decide which model is right for you?
We are here to help.

Contact Us



For more details download the full documentation here:



8204820682078254*8256*8257*
ACW5kVac/50mA5kVac/100mA
DCW6kVdc/20mA
IR6kVdc/50GΩ
GB40A/600mΩ/8Vac
LLT-16A/277Vac/15~1MHz-16A/277Vac/15~1MHz
RUN-16A/277Vac/4.5kW-16A/277Vac/4.5kW
AC Source-500VA-500VA
Dimension (WxHxD, mm)430x133x500
Weight37kg38kg42kg47kg

*500VA and meets 200mA short circuit requirements.
