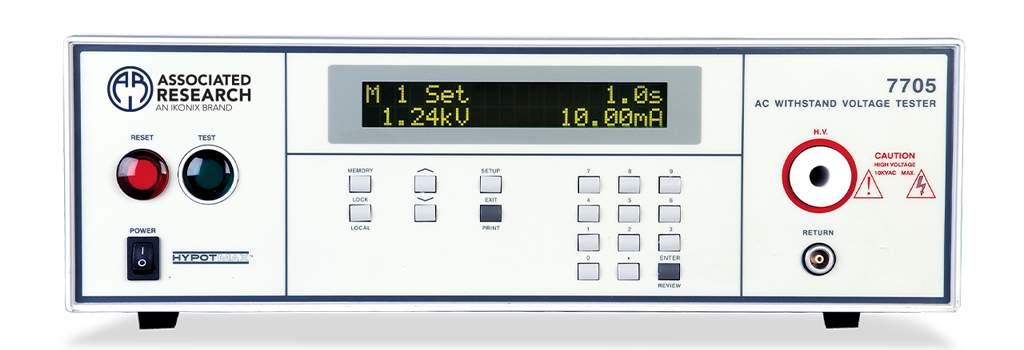

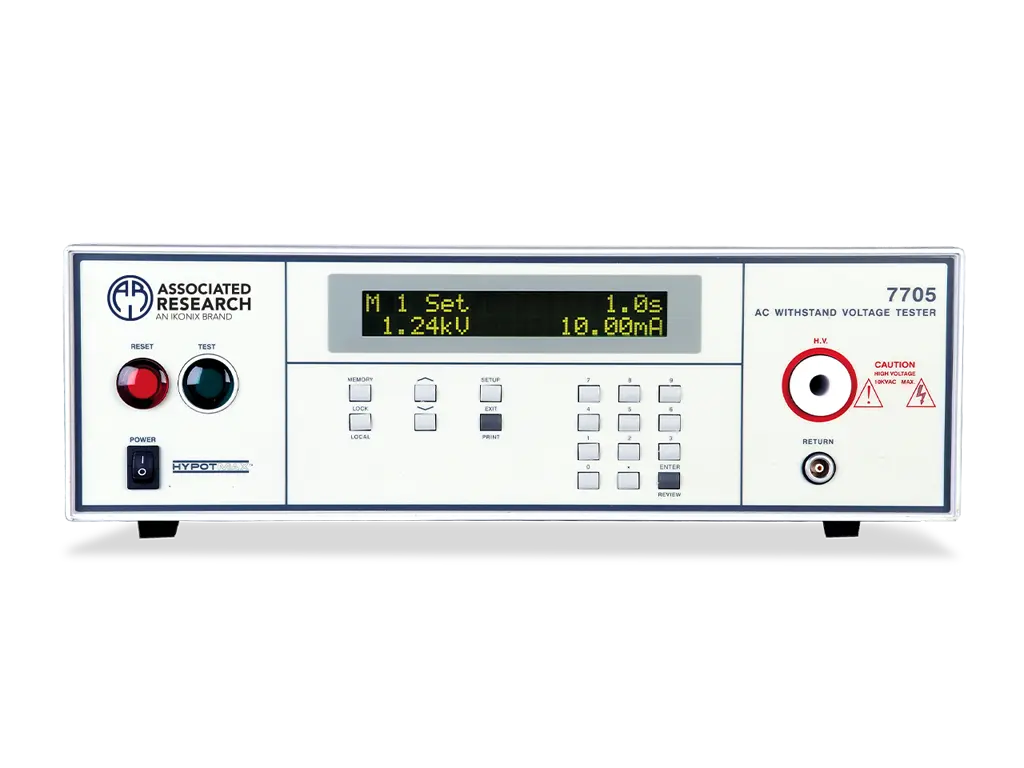

HypotMAX®Series High Voltage Hipot Tester
Made for Toughest Tests
The HypotMAX High Voltage Hipot Testers features ultra-high output 20kV voltage required for high-impedance components and special-purpose hipot testing. With high resolution up to 1μA, the HypotMAX series delivers the quality users demand and the best tool for R&D design validation.
Documentation & Video
Safety and Productivity Features
AC Hipot
DC Hipot

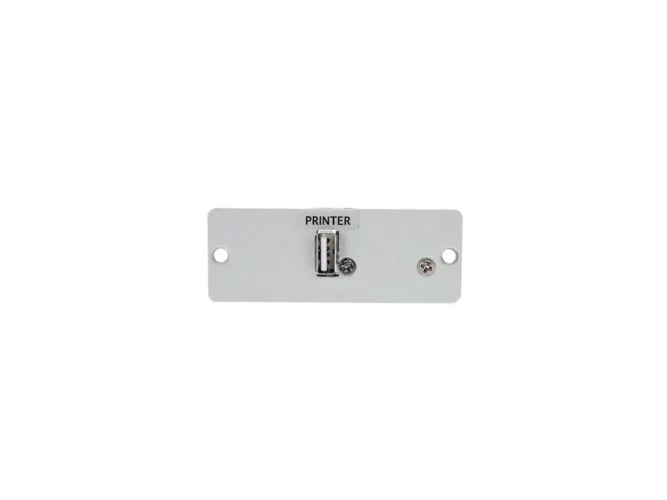

USB

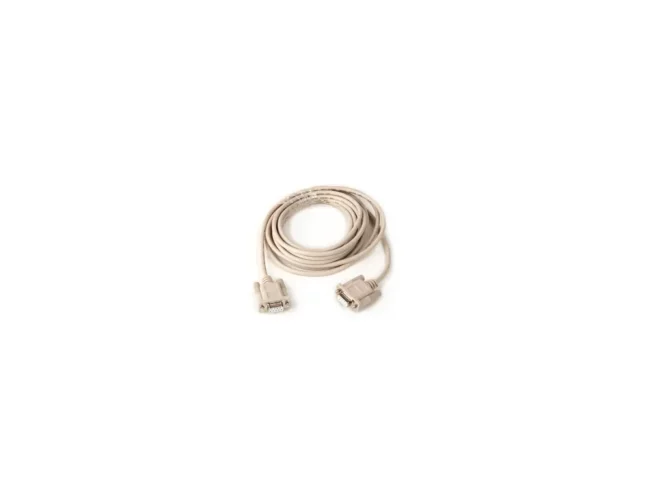

RS-232

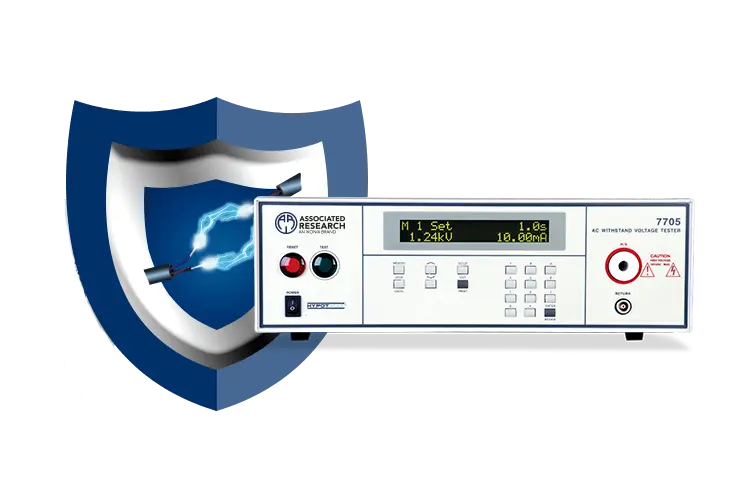

Your Quality Assurance
Get peak quality assurance for your products with ARC detection capability and eliminate poor gap spacing that may be damaged during shipping and cause dielectric breakdowns.
20kV High Output Voltage
Ultra-high output voltage of 20kV allows special-purpose hipot tests on high insulation materials.

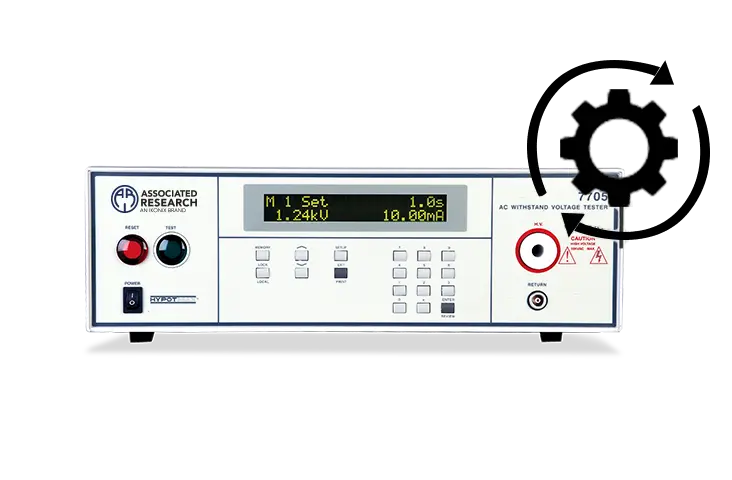

Uninterrupted Step Testing
Features uninterrupted voltage adjustments during various ACW or DCW step tests.
Specifications
Can't decide which model is right for you?
We are here to help.
We are here to help.
For more details download the full documentation here:
| 7705 | 7710 | 7715 | 7720 | |
|---|---|---|---|---|
| ACW | 10kVac/20mA | - | 20kVac/10mA | - |
| DCW | - | 12kVdc/10mA | - | 20kVdc/5mA |
| Dimensions (WxHxD, mm) | 430x133x400 | |||
| Weight | 24kg | 24kg | 22.5kg | 22.5kg |
* Charge Low function only available on 7710 and 7720 models.
