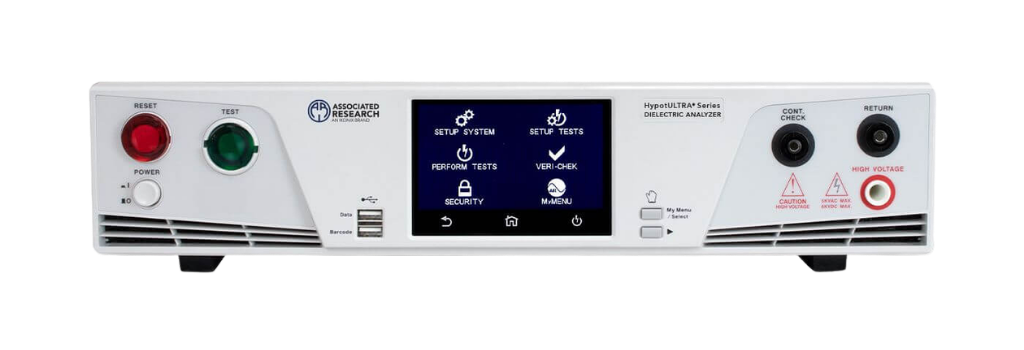

HypotULTRA®Electrical Safety Compliance Analyzer
Compact, Powerful, and Ready for Electrical Safety Challenges
The HypotULTRA® series is the premier line of Dielectric Withstand Testers for production environments. Combining four essential safety testing functions in a compact 2U chassis, it offers versatility and adaptability in confined workspaces. With advanced ARC detection, precise ground bond measurements, true negative voltage capabilities, and a robust 500VA output, it meets the rigorous demands of modern industrial applications. The intuitive 4.3-inch touch panel and barcode scanning streamline testing operations, ensuring simplicity and peak productivity for electrical safety operators.
Documentation & Video
Safety and Productivity Features
AC Hipot
DC Hipot
Ground Continuity
Insulation Resistance
Ground Bond
USB
▼Supported Brands
ADATA、Apotop、Ridata、SanDisk、Team、Transcend、Kingston、Verbatim
RS-232
Barcode Capability
▼Supported Brands
CINO, Honeywell, AIDA, DENSO
SmartGFI®
Modular Multiplexer
WithStand Compatible

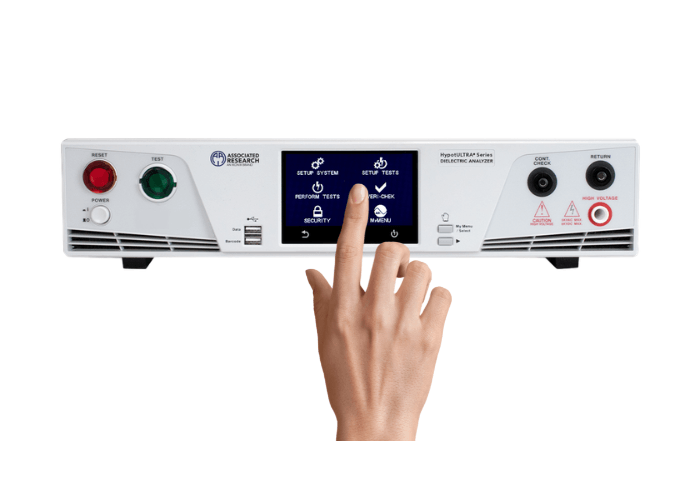

Simple and Intuitive Operation
In the fast-paced world of manufacturing, achieving optimal operational efficiency is crucial. The HypotULTRA® series, designed with an intuitive and user-friendly touch panel, combined with highly flexible and programmable testing parameters, significantly enhances testing efficiency. This advanced system ensures that your production line operates at peak performance, providing precise and reliable electrical safety testing.

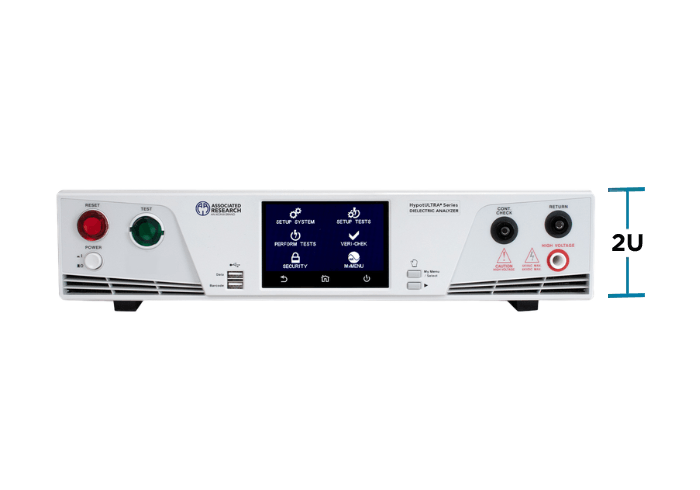

Compact in Size
The compact 2U (89mm) height optimizes space utilization, making it ideal for manufacturers and system integrators who are meticulous about space management and uncompromising on performance.
Fast Discharge, Faster to Safety
AR exclusive patent on fast discharge function helps the DUT rapidly discharge excess electricity within 50ms to maximize operator safety, especially when testing large capacitance DUTs.

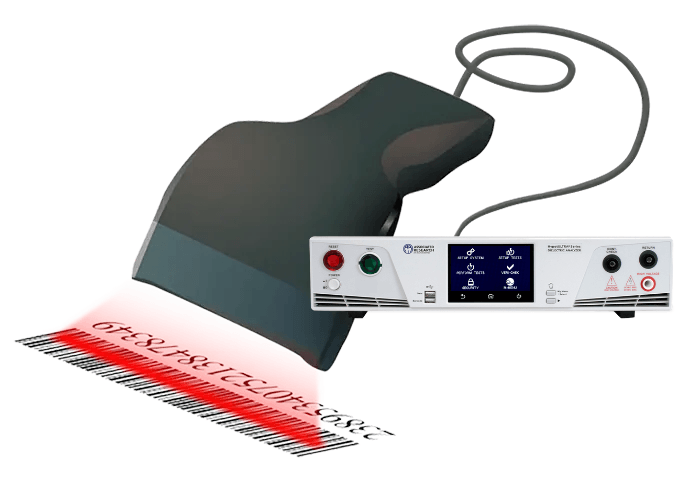

Precision Barcode Operation
The built-in barcode interface supports various vendors, allowing users to scan, command, and control directly without needing a computer connection.
Outputting Maximum 500VA
The 500VA maximum output capacity enables handling large electric motors across various industries that require high-capacity sources for driving and testing.
True Negative Voltage Technology
Electric motor manufacturing sector benefits from True Negative Voltage technology in insulation resistance (IR), which meets stator winding insulation standards IEEE Std. 43.
Specification
Can't decide which model is right for you?
We are here to help
We are here to help
For more details download the full documentation here
| 7820 | 7850 | 7804 | 7854* | 7800* | |
|---|---|---|---|---|---|
| ACW | 5kVac/40mA | 5kVac/100mA | |||
| DCW | - | 6kVdc/10mA | 6kVdc/20mA | ||
| IR | - | 6kVdc/50GΩ | |||
| GB | - | 40A/600mΩ/8Vac | - | ||
| Dimension (WxHxD, mm) | 430x88.1x400 | ||||
| Weight | 15.4kg | 15.9kg | 18.6kg | 21kg | 20.4kg |
*500VA and meets 200mA short circuit requirements.
