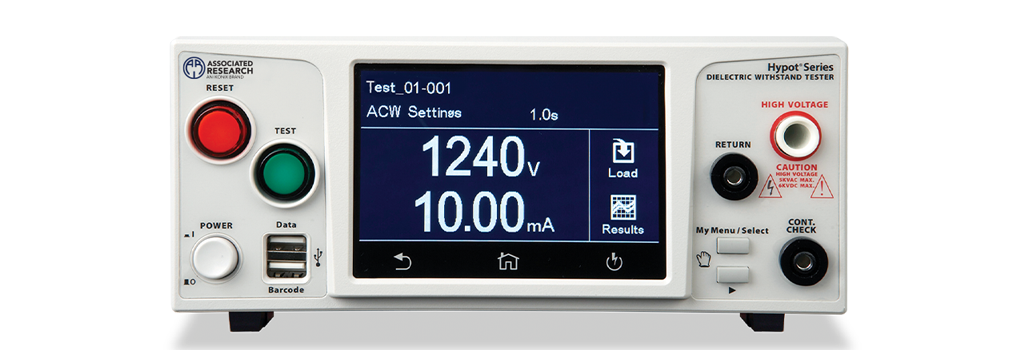

Hypot®Series Electrical Safety Tester



As Compact and Versatile As Ever

The Hypot® ( formerly known as eec EST-300 ) safety tester's compact size does not compromise the device's performance or reliability. The series delivers high testing efficiencies that show in every detail. The built-in ARC detection feature — utilized by many top-tier manufactures - detects abnormal circuit shorts, preventing poor gap spacing that can cause dielectric breakdowns while enhancing quality assurance. The ramp-high and charge-low functions increase efficiency, eliminating common errors from the DUT's test results caused by current overshoots and faulty connections.



Safety and Productivity Features

AC Hipot

DC Hipot

Ground Continuity

Insulation Resistance

USB
▼Supported BrandsADATA、Apotop、Ridata、SanDisk、Team、Transcend、Kingston、Verbatim
Barcode Capability
▼Supported BrandsCINO, Honeywell, AIDA, DENSO
SmartGFI®

WithStand Compatible

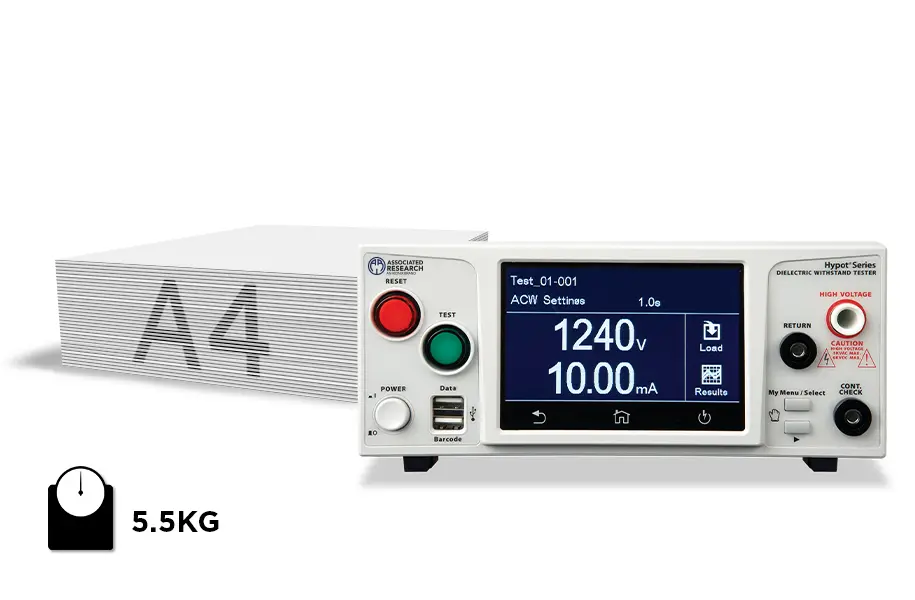

Thinner and Lighter

Crafted to the size of a piece of A4 paper and weighing only 5.5kg, the tester is designed to be extremely compact, making it ideal for any spatially confined environment.

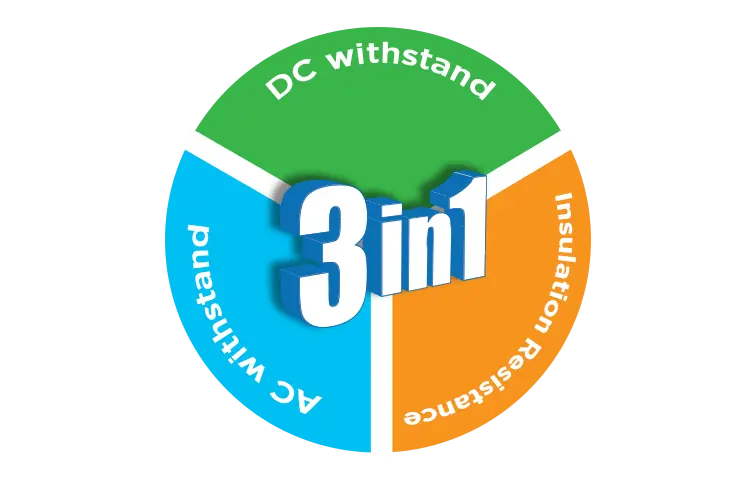

3-in-1 System

Fully integrated AC/DC withstand, and insulation resistance testing features into a single solution. Capable of performing multiple combinational testing features into a one-step testing function to increase the testing efficiency.

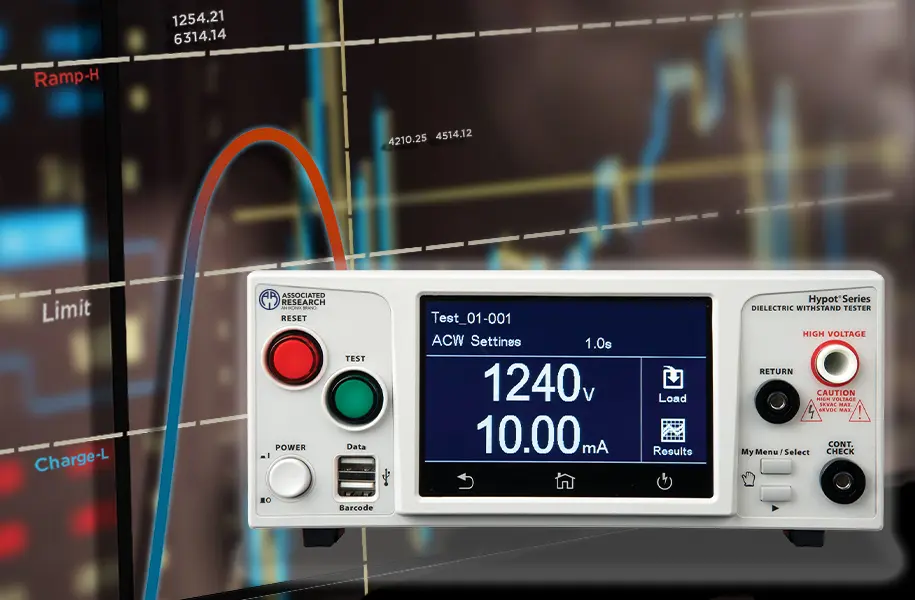

Accuracy that Eliminate Misjudgments

Ramp-high and charge-low functions increase testing efficiency by eliminating judgment errors — common during current overshoots and faulty connections from the DUT's test results.

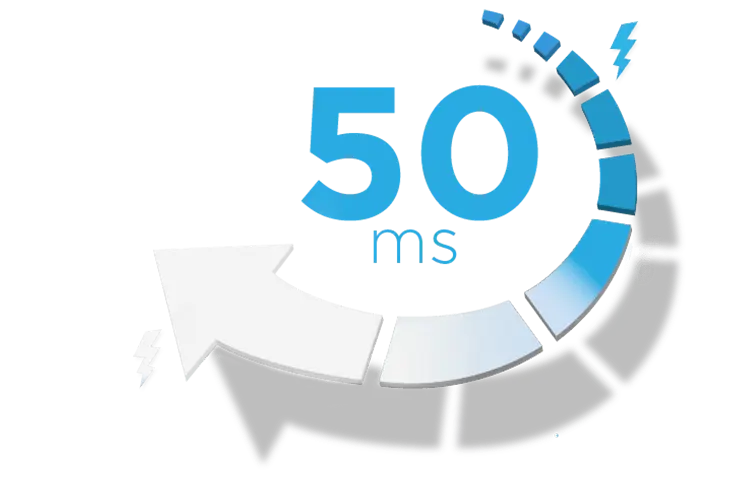

Fast Discharge, Faster to Safety

The Hypot series' patented fast-discharge helps the DUT to quickly and efficiently release excess electricity within 50ms, ensuring maximum operator safety.

Your Quality Assurance

Get peak quality assurance for your products with ARC detection capability and eliminate poor gap spacing that may be damaged during shipping and cause dielectric breakdowns.

Specifications

Can't decide which model is right for you?
We are here to help.

Contact Us



For more details download the full documentation here:



3805385538653870
ACW5kVAC/20mA
DCW-6kVDC/7.5mA
IR- 1kVdc/50GΩ- 1kVdc/50GΩ
Dimension (WxHxD, mm)215x88.1x300
Weight5.46kg

Current Firmware Version : V1.07.00
