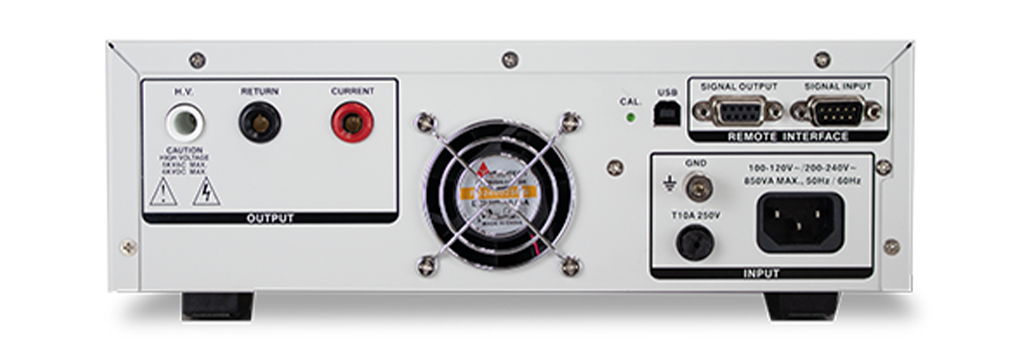

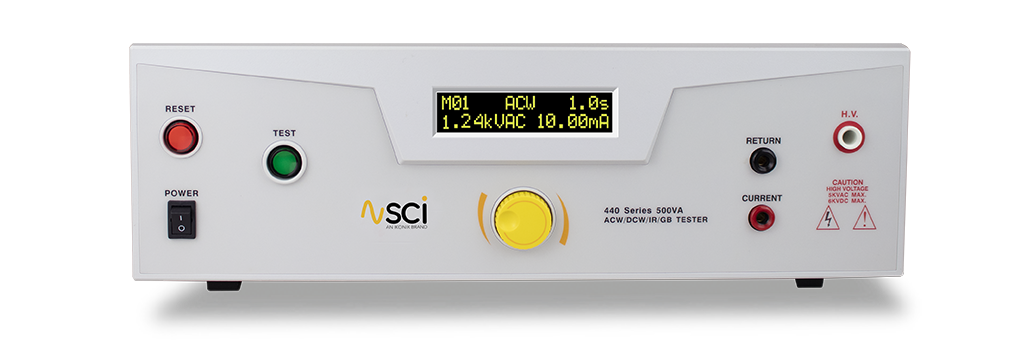

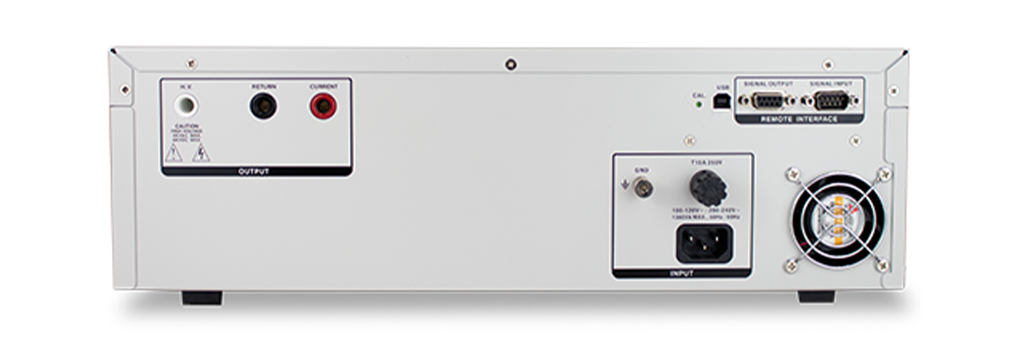

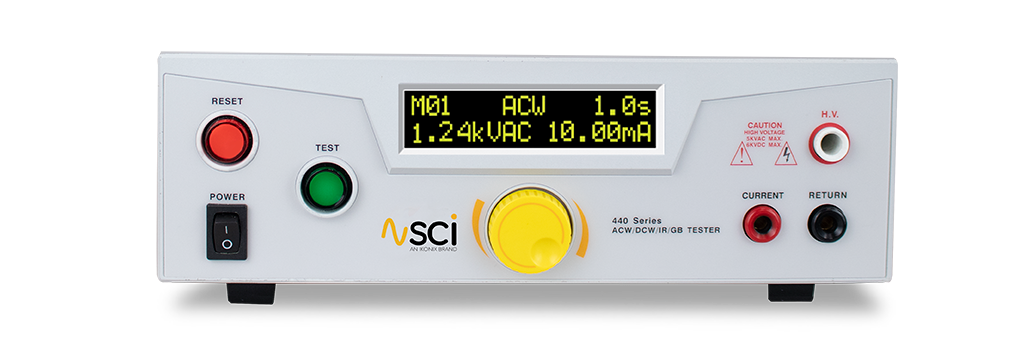

440 Series Electrical Safety Compliance Testers
Safety made Simple
The 440 Series provides advanced 4-in-1 test capability in a convenient one-box solution. This new series performs AC Hipot (448 - 500 VA), DC Hipot, Insulation Resistance and 40A AC Ground Bond tests while taking up minimal production line space. The 440 Series is simple and easy-to-use; reducing setup time and increasing production line throughput for your application. With multiple memories and an optional USB port for remote BUS communication so you can quickly perform tests on a variety of DUTs from the front panel or with a PC.
Documentation & Video
Safety and Productivity Features
Test Setup Memories
Frequency Selection
Ramp
Dwell
Regulated Output
PLC-Remote
USB
Safety Agency Listed
4-IN-1
4-in-1 Tester in Compliance with Standards with AC Hipot, DC Hipot, Insulation Resistance, and Ground Bond capabilities, meeting majority of testing standard requirements
Simple Operation
Simple design and easy-to-use interface, reducing setup time and increasing production-line throughput for your application. Every function is controlled via a rotary knob. Rotate and press, that’s all it takes to complete the test procedure, significantly reduces workload of the operator and improve efficiency.
Consistent Accuracy
Simple does not mean compromise. The 440 series is built to generate consistent testing result under various condition, safeguarding the quality of your products.
20 Programmable Memories
20 built-in programmable memory settings allow faster memory recall for various testing parameters, optimizing ease of operation.
Specifications
Can't decide which model is right for you?
We are here to help.
For more details download the full documentation here:
446 | 448* | |
---|---|---|
ACW | 5kV/20mA AC | 5kV/99.99mA AC |
DCW | 6kV/5mA DC | 6kV/10mA DC |
IR | 1kVdc/1000MΩ | |
GB | 40A | |
Dimension (WxHxD, mm) | 280 x 89 x 400 | 430 x 132 x 400 |
Weight | 8kg | 24kg |
*500VA and meets 200mA short circuit requirements.
