SE Series Electrical Safety Analyzer

SE Series Electrical Safety Analyzer

All-in-One Enhanced Simplicity, Safety, and Reliability

The next generation SE series compact 4-in-1 safety analyzer brings together the enhanced safety features of advanced ARC detection, next level precision ground bond measurements and true negative voltage with the convenience of maximum 500VA output capacity. The result is a line of testers that is ideally suited to the demanding environment of today’s industrial settings. Designed with user-friendly 4.3-inch touch panel and barcode data scanning features, it makes the testing operations simple and intuitive and in overall, achieving highest work productivity.

Safety and Productivity Features

Ramp High
Charge Low
Fast Discharge
ARC Detection
Smart GFI
External Scanner

Your Quality Assurance

Peak quality assurance for products with ARC detection capability eliminates poor gap spacing that may be damaged during shipping and cause dielectric breakdowns.

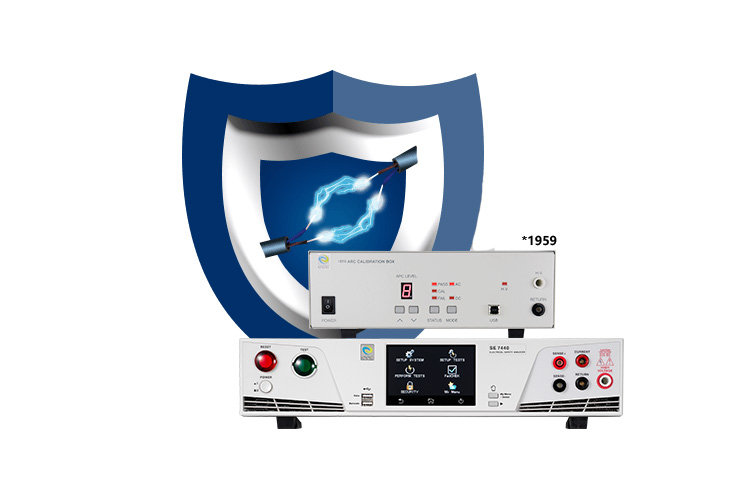

Remaking SE Series Accuracy Just Like New

Bundle with 1959 ARC Calibration Box to maintain the default high accurate measurements.

*Applicable Version: V2.02.00 and later

Simple and Intuitive Operation

Intuitive and user-friendly touch panel operation combined with highly flexible and programmable testing parameters to enhance testing efficiency.

Compact in Size

Compact 2U (89mm) height enables system integrators and maximizes space for testing.

Fast Discharge, Faster to Safety

EEC exclusive patent on fast discharge function helps the DUT rapidly discharge excess electricity within 50ms to maximize operator safety, especially when testing large capacitance DUTs.

Scan and Document

Built-in barcode interface supports a multitude of vendors and allows users to scan and capture data directly without connecting to a computer.

500VA Output

Outputting Maximum 500VA

500VA maximum output provides the ability to handle large electric motors in a wide range of industries requiring high-capacity sources to drive and test.

Enhancing Testing Efficiency

One-click scanning checks several points for potential weaknesses using up to 16 channels on multi-functional products, increasing testing efficiency.

True Negative Voltage Technology

Electric motor manufacturing sector benefits from EEC’s True Negative Voltage technology in insulation resistance (IR), which meets stator winding insulation standards IEEE Std. 43. True Negative Voltage Whitepaper (1237 downloads)


Can't decide which model is right for you?
We are here to help



For more details download the full documentation here


SE7430 SE 7440 SE 7441*SE 7452SE 7451
ACW 5kVac/40mA 5kVac/100mA
DCW 6kVdc/10mA
IR 6kVdc/50GΩ
GB- 32A/600mΩ/8Vac-
Dimension (WxHxD, mm) 430x88.1x400 430x133x400  430x88.1x400
Weight 12kg 15kg 20kg23.4kg 21kg

* SE 7441 Built-in 8W+8G scanner

Current Firmware Version : V2.06.00
