OPE-DI Series Linear Programmable DC Power Source

OPE-DI Series Linear Programmable DC Power Source



Four Channel Power Source, Economical in Value

OPE-DI Series is a valuable high-performance 2 channel programmable DC power source with RS232C or RS485 interface (SCPI Protocol) connectivity. The OPE series bench-top design makes it a versatile solution for designing and testing requirement in various industries such as Industrial fields, R&D and educational fields.

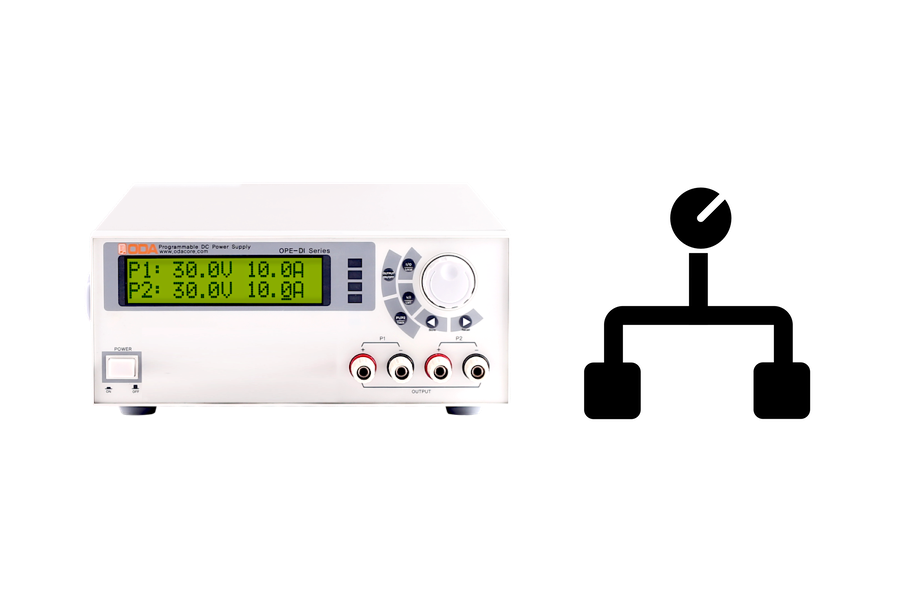

Control Two Channels In One Button

Optimize the efficiency of power supply in manufacture's production line with tracking mode function. This allows powering up to two channels with the same voltage, current and all function in one button, this is extremely beneficial when one channel is already occupied in one production line and is ready to expand on other.

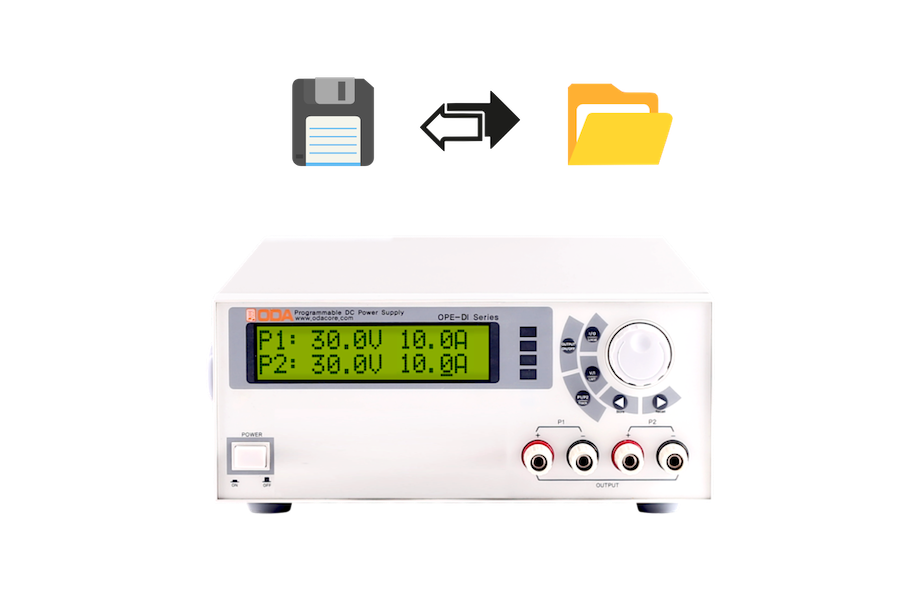

Memory Recall and Restore

Built-in memory settings that are able to store and recall quickly to the preset parameters. Even when a user is not an engineer, he or she can easily apply this function that is stored in advance to inspect product production or run the reliability test to get the job done.

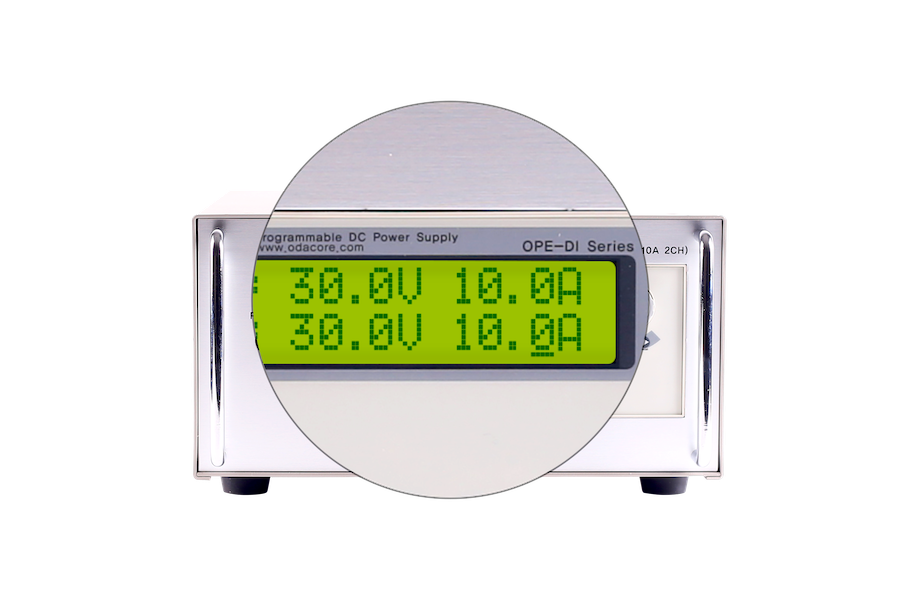

Easy to Read Display

OPE-DI Series has a large display with 3-digits resolution and simultaneously display both channel information.

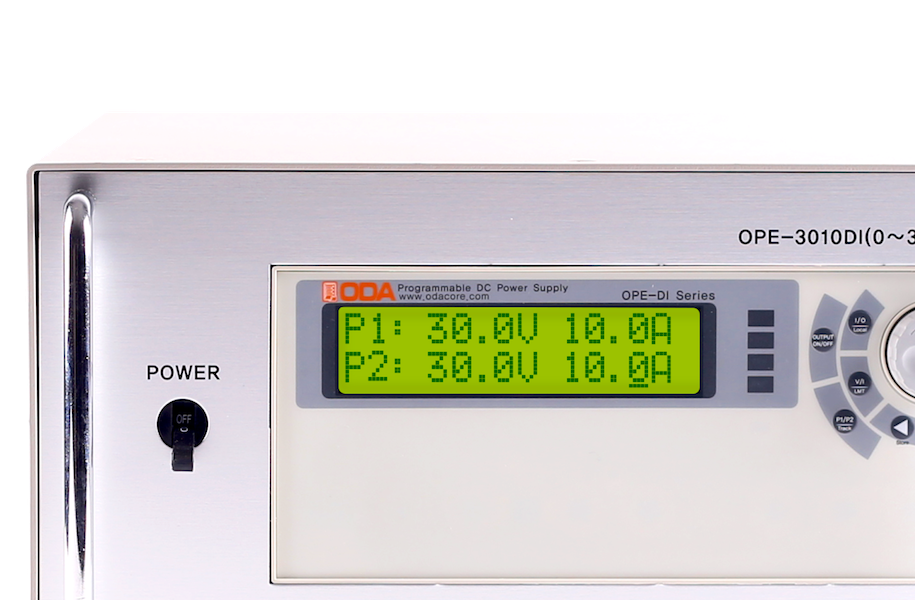

Accountable Precision Measurement

OPE-DI Series delivers a reliable high precision voltage and current measurements in both Programming Accuracy and Read-back Accuracy.

Specifications

Can't decide which model is right for you?
Or need product demonstration?



OPE-3010DIOPE-3050DIOPE-30100DI
Output Rating0~30V, 0~10A, 2 Channel0~30V, 0~50A, 2 Channel0~30V, 0~100A, 2 Channel
Programming Resolution≤7.5mV/≤4mA≤7.5mV/≤15mA≤7.5mV/≤25mA
Display Meter Resolution100mV/100mA100mV/1A
Programming/Read back Accuracy
(@25°C±5°C)±(%of output + offset)
0.2%+200mV/0.2%+50mA0.2%+200mV/0.2%+250mA0.2%+200mV/0.2%+500mA
Ripple & Noise≤2mVp-p, ≤3mArms≤2mVp-p, ≤10mArms≤10mVp-p, ≤10mArms
Load Regulation0.01%+4mV, 0.01%+1mA0.01%+8mV, 0.01%+5mA0.01%+30mV, 0.01%+10mA
Line Regulation0.01%+4mV, 0.01%+2mA0.01%+8mV, 0.01%+5mA0.01%+30mV, 0.01%+10mA
Command Processing Time<20ms
Voltage Programming Speed(No load)Rising time: <120ms
Falling time: <3.6s
Transient Response TimeLess than 50μs for output to recover to with in 15mV Following a change in output current full load to half load or vice versa.
Dimension (mm)
Width x Height x Depth
300x150x460426x265x650 (8U)Rack Mount
