Micro in Detection Macro in Detail
The 6700 series linear programmable AC power source provides clean power through a range of functional setups. The ultra-low noise design is well-suited to networking communication, audio and video equipment, and surveillance systems.
Safety and Productivity Features
High Density Power Design
Delivering 1kVA at just 89mm height, the latest high-density power technologies make the 6700 series compact in size to take up less testing space.
100us Response, Seamless Operation
The rapid transient reaction allows waveforms to instantly restore within 100us when loads are either added or removed.
Ultra-Low Noise Design
Linear design provides output voltage in ultra-low-noise for applications like network communication, audio and video equipment, and surveillance systems.
Power of OCF
EEC proprietary Over Current Fold (OCF) function automatically adjust voltages, maintaining current for activating the DUT.
Optional 01.mA/0.01W high-resolution measurement feature supports greater visual detail.

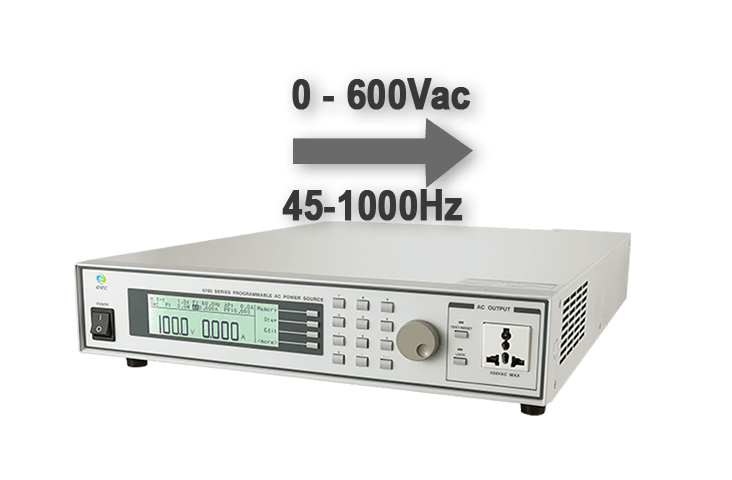

Wide Range Output Capability
Optional wide output voltage range of 0-600Vac and frequency range of 45-1000Hz meets rigorous testing demands.
|Max. Current (0 - 150Vac)||4.2A||8.4A||16.8A||25.2A||33.6A||42A|
|Max. Current (0 - 300Vac)||2.1A||4.2A||8.4A||12.6A||16.8A||21A|
|Frequency Range||45 - 500Hz Full Range Adjust|
|Total Harmonic Distortion (THD)||< 0.2%|
|Voltage||115 / 230Vac±15%||230Vac±15%|
|Frequency||47 - 63Hz|
|Efficiency||≧ 40% (at Full load)|
|Dimensions (WxHxD, mm)||430x89x400||430x89x560||430x268x560||430x624x650|
